Shield is an Italian company based in Cavaglietto, near Novara. Our 5,000 m2 premises are situated within a total area of 43,000 m2. Open spaces, efficient modern machinery for plastic injection moulding, both horizontal and vertical, cable cutting, SMD electronics and automated assembly procedures allow products to be manufactured in both large batches or small customized lots whilst maintaining a favorable cost/quality ratio, competitive prices and short lead times. The company has been organized with Baan’s ERP integrated system for years. It permits control from the administrative point and throughout the production process. Final products are packed, numbered and dated by a system which assures the identification of the lot of the goods. Quality Control The company is organized so that ISO9001 standards are respected. Design and Research Several engineers are always engaged in designing new items and production systems to obtain higher quality at competitive prices. Tooling Unit The internal tool workshop makes prototype production easy, guarantees product realisation according to our clients’ requirements and facilitates manufacturing and constant maintenance of tools.

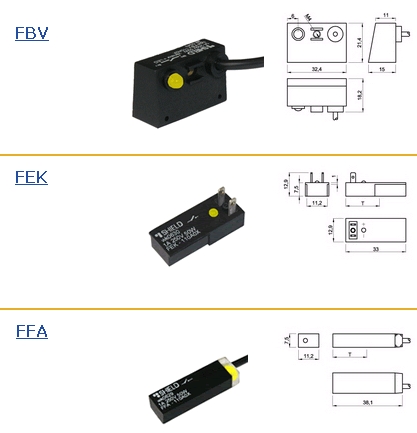

FBV High switching power. Long electrical life. Body material: Polyamide FEK High switching power. Long electrical life. Mountings are available for all the cylinders on the market. Standard sensitivity suitable for most of cylinders on the market. Other sensitivities on demand Body material: Polyamide. Centre of the sensitive area: reed, T = 14 mm FFA Body similar to FFV series, but with a rectangular profile instead of a T shape. Designed for special applications where the T profile is not suitable. Body material: Polyamide Centre of the sensitive area: reed, T = 14 mm FFV High switching power. Long electrical life. Mountings are available for the cylinders on the market. Standard sensitivity suitable for most of cylinders on the market. Other sensitivities on demand. 2-wire circuit to make connection easier. 3-wire circuit suggested in order to avoid voltage drop. Body material: Polyamide Centre of the sensitive area: reed, T = 14 mm FPB Mounting holes for fixed position (not adjustable). Small dimensions. Long electrical life. Body material: Polyamide. Centre of the sensitive area: electronic, T = 5 mm reed, T = 8 mm FPC Side mounting. Small dimensions. Long electrical life. Designed for cylinders with a suitable groove, but clamps are also available for most other cylinders on the market. Standard sensitivity suitable for most cylinders. One single switch type can be used for different brands of cylinder. Body material: Polyamide. Centre of the sensitive area: electronic, T = 5 mm reed, T = 8 mm FPF Side mounting. Small dimensions. Long electrical life. Designed for cylinders with a suitable groove, but clamps are also available for most other cylinders on the market. Standard sensitivity suitable for most cylinders. One single switch type can be used for different brands of cylinder. Body material: Polyamide. Centre of the sensitive area: electronic, T = 5 mm reed, T = 8 mm FPH Top mounting. Small dimensions. Long electrical life. Designed for cylinders with a suitable groove, but clamps are also available for most other cylinders on the market. Standard sensitivity suitable for most cylinders. One single switch type can be used for different brands of cylinder. Body material: Polyamide. Centre of the sensitive area: electronic, T = 5 mm reed, T = 8 mm FPI Single mounting hole. Small dimensions. Long electrical life. Body material: Polyamide. Centre of the sensitive area: electronic, T = 5 mm reed, T = 8 mm FPL Top mounting. Small dimensions. Long electrical life. Designed for cylinders with a suitable groove, but clamps are also available for most other cylinders on the market. Standard sensitivity suitable for most cylinders. One single switch type can be used for different brands of cylinder. Body material: Polyamide. Centre of the sensitive area: electronic, T = 5 mm reed, T = 8 mm FGV Short body. High switching power. Long electrical life. Mountings are available for most cylinders on the market. Standard sensitivity suitable for most of cylinders on the market. Other sensitivities on demand. 2-wire circuit to make connection easier. 3-wire circuit suggested in order to avoid voltage drop. Body material: Polyamide. Centre of the sensitive area: electronic, T = 3 mm reed, T = 9 mm FLV To be used on cylinders with a suitable groove. Small dimensions. Long electrical life. Body material: Stainless steel. Centre of the sensitive area, type without led: reed, T = 8 mm FMV To be used on cylinders with a suitable groove. Small dimensions. Long electrical life. Body material: Stainless steel. Centre of the sensitive area, type without led: reed, T = 10 mm FNV To be used on cylinders with a suitable groove. High switching power. Long electrical life. Body material: Polyamide Centre of the sensitive area, type without led: reed, T = 13 mm FPA Top mounting. Small dimensions. Long electrical life. Designed for cylinders with a suitable groove, but clamps are also available for most other cylinders on the market. Standard sensitivity suitable for most cylinders. One single switch type can be used for different brands of cylinder. Body material: Polyamide. Centre of the sensitive area: electronic, T = 5 mm reed, T = 8 mm FPM Single mounting hole. Small dimensions. Long electrical life. Body material: Polyamide. Centre of the sensitive area: electronic, T = 5 mm reed, T = 8 mm FPV Side mounting. Small dimensions. Long electrical life. Designed for cylinders with a suitable groove, but clamps are also available for most other cylinders on the market. Standard sensitivity suitable for most cylinders. One single switch type can be used for different brands of cylinder. Body material: Polyamide. Centre of the sensitive area: electronic, T = 10 mm reed, T = 13 mm FSA Micro size. Top mounting. Small dimensions. Long electrical life. Designed for cylinders with a suitable groove. Standard sensitivity suitable for most cylinders on the market. Body material: Polyamide. Centre of the sensitive area: electronic, T = 5 mm reed, T = 8 mm FSV Micro size. Top mounting. Small dimensions. Long electrical life. Designed for cylinders with a suitable groove. Standard sensitivity suitable for most cylinders on the market. Body material: Polyamide. Centre of the sensitive area: electronic, T = 10 mm reed, T = 13 mm FTV Top mounting. Small dimensions. Long electrical life. Available also with timer (20ms) to detect the signal of very fast pistons Designed for cylinders with a suitable groove. Standard sensitivity suitable for most cylinders. Body material: Metal. Centre of the sensitive area: electronic, T = 4 mm reed, T = 9 mm
